ULTRASONIC CLEANERS

FEATURES

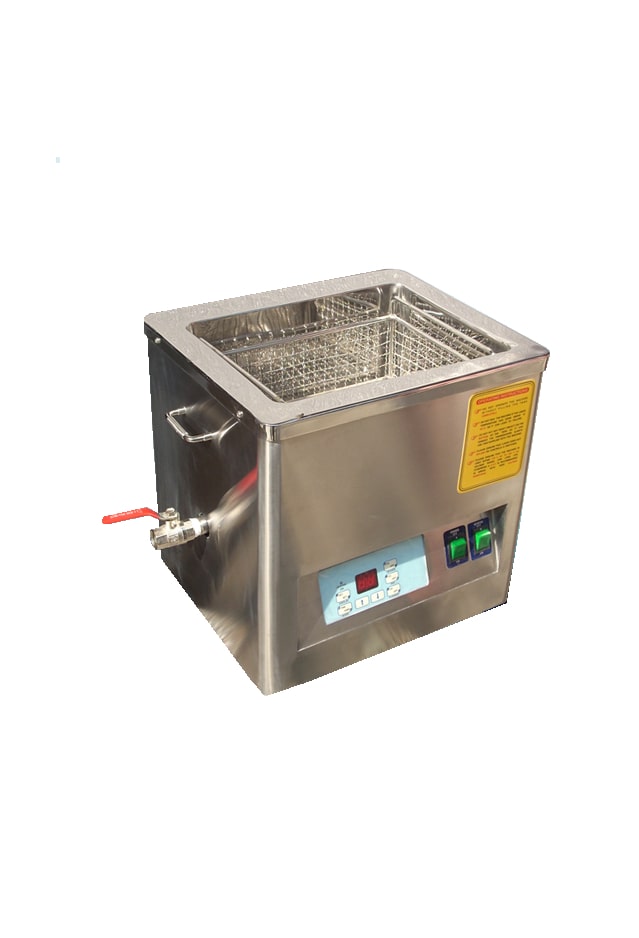

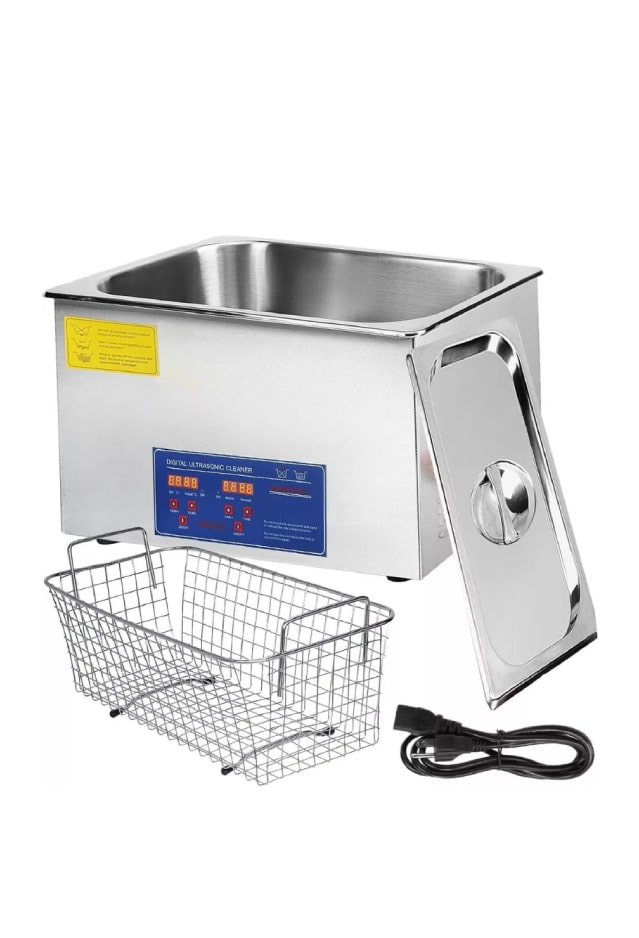

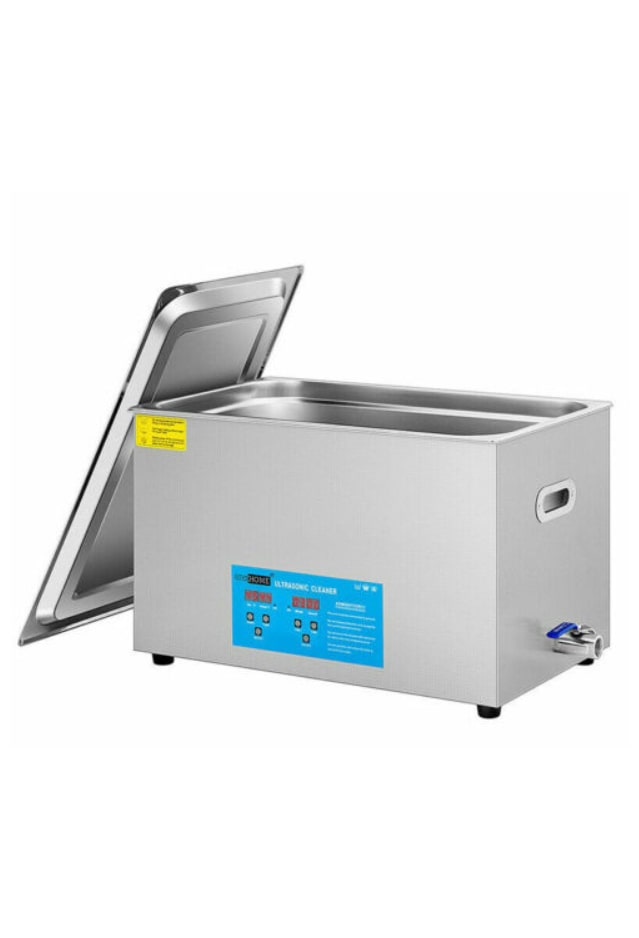

The Bench Top Single Stage Ultrasonic Cleaning systems have many applications as a cleaner and processor in Pharmaceutical, Medical, Hospital, Industries, Clinics, Pathological lab, Textiles, Jewellery, Optical and many more.
Available in Fully S.S 304 GMP Model with & without heating feature.
Double Walled Construction with Moulded & Fabricated Tanks.
Temperature ranges from ambient to 50°C with Excellent uniformity.
PZT Sandwich Type Transducer.
Ultrasonic Power Ranging from 50 Watts to 500 Watts with Ultrasonic frequency of 33 ± 3 KHz
Inhouse Developed MOSFET based PID temperature controllers & timer that feature automatic frequency tuning and display both set value (SV) and process value (PV). Temperature Accuracy: ± 0.2 °C & Temp & Uniformity: ± 1.0 °C
Auto-Degassing Available in all the models.
Sheathed Tubular air heaters are considered best. These elements are ISI mark and from reputed brands in the market and offer fast heat up using minimum energy consumption
Noiseless Heaters & Low transducer Noise
Maintenance free, Easy to Clean & Easy to Operate.
S.S 304 Quality Wire-Mesh Basket provided inside the Chamber.
S.S 304 Quality Closing Lid Available with all the models
Drain Valve available in all the models.

MODEL		UC-4.5	UC-10	UC-20	UC-30	UC-50
Chamber Dim.MM	L	300 MM	300 MM	500 MM	500 MM	450 MM
	W	150 MM	238 MM	300 MM	300 MM	450 MM
	H	100 MM	200 MM	150 MM	200 MM	300 MM
Chamber Vol.	Lit.	4.5	10	20	30	50
Ultrasonic Power	Wts	100 WATTS	250 WATTS	400 WATTS	500 WATTS	500 WATTS
Loading Basket		YES	YES	YES	YES	YES
