TISSUE CULTURE & MUSHROOM INDUSTRIES

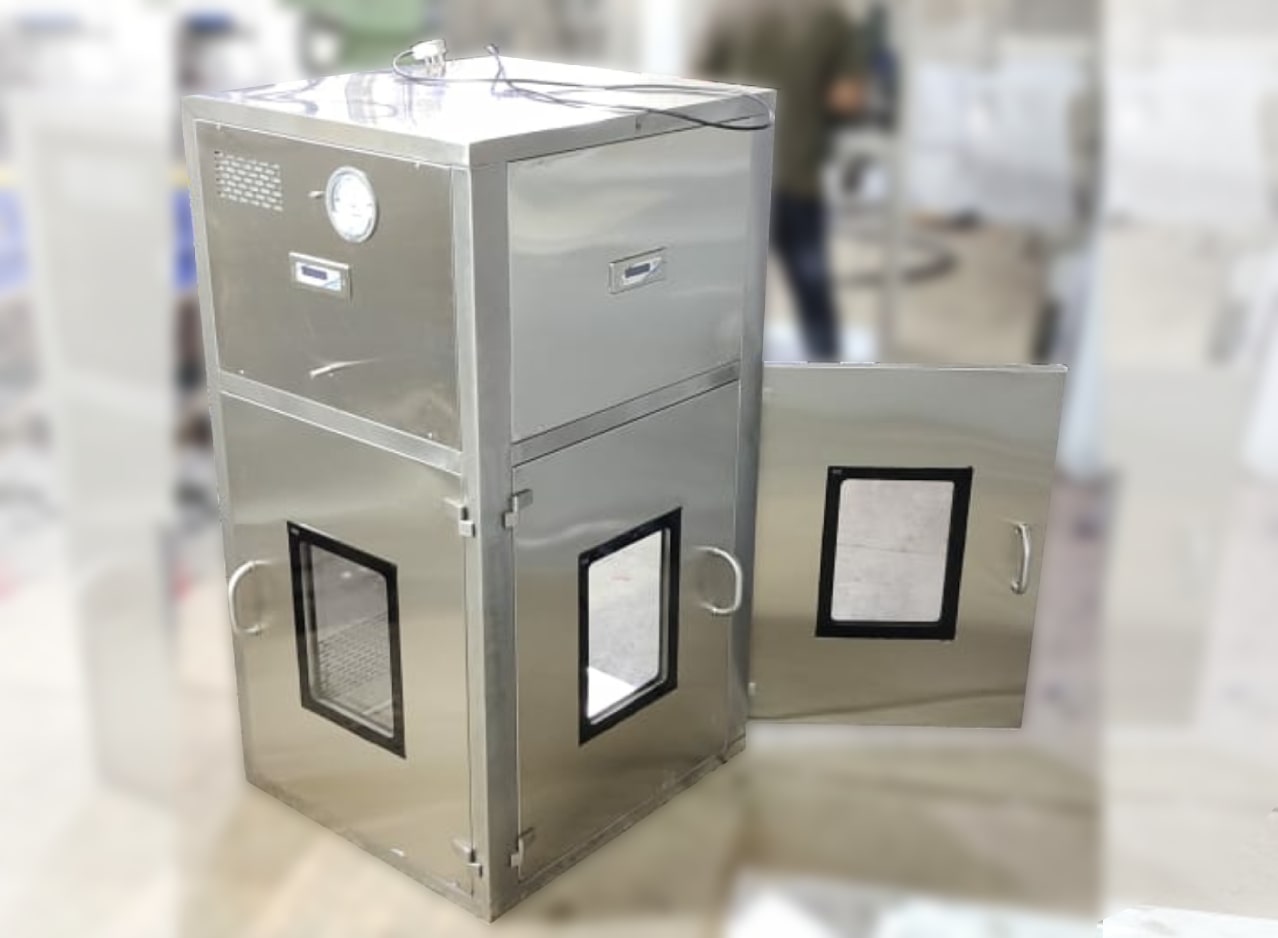

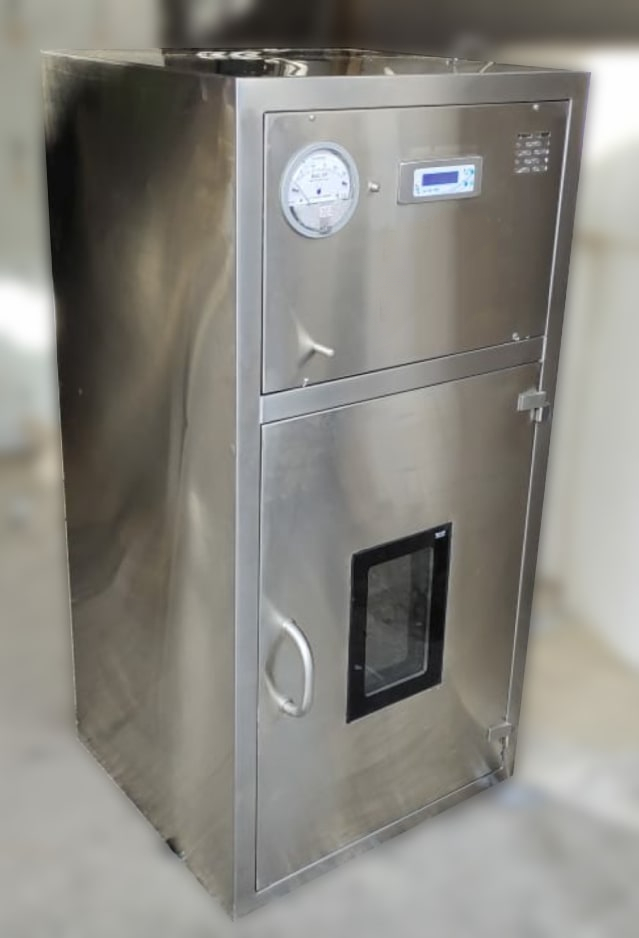

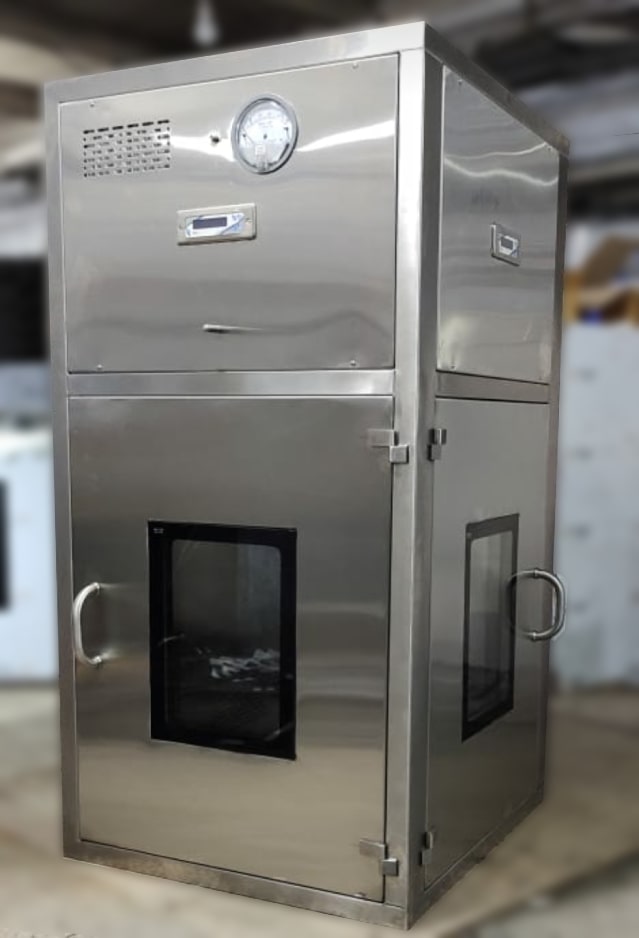

PASSBOXES

FEATURES

  • Hospharma Passboxes are a Static & Dynamic cubicle box that has interconnected doors located on both sides. This prevents contamination of the monitored environment when the material is being transferred within.
  • A dynamic pass box functions similarly to a laminar flow unit. Clean air enters this pass box and also blocks the contaminants to enter. It has interlocked doors on both sides, which avoids contamination of the system area. The pass box machine has a re-circulated filtration system and is designed to GMP specifications.
  • Low Noise Level, High Airflow Capacity & Easy to Change Filters.
  • Also Available in Triple Door Fully S.S 304 GMP Model.
  • Doubled Walled Construction with Toughed Clear Glass on the doors.
  • Electro-Magnetic Door Interlocking system.
  • Microprocessor LCD Display Controller with timer & other features.
  • HEPA filtration unit provides Class 100 air quality with 99.999 % efficiency for particles >0.3 μm
  • Pre-Filter provides 85% efficiency for particles >0.5 μm (Cleanable)
  • High efficient Blower centrifugal type with lifetime lubricated bearings.
  • Air velocity: 0.45±0.05 mps (90±20FPM) Below Six Inch of Grill.
  • DOP Port/Atmospheric Nozzles available in all models.
  • High intensity, low wattage 750-800 lux Light & Noise Level Less than 65 decibels.
  • Branded Magnehelic Gauge to check Filter Pressure.
  • Auto switch on/off for U.V. Germicidal tube & fluorescent light along with Hour meter for UV light.

TABLE SPECIFICATIONS

DYNAMIC PASSBOX
MODEL DP-1.5 DP-2 DP-3 DP-4 DP-5
Internal Dimension H 1.5 FEET 2 FEET 3 FEET 4 FEET 5 FEET
W 1.5 FEET 2 FEET 3 FEET 4 FEET 5 FEET
L 1.5 FEET 2 FEET 3 FEET 4 FEET 5 FEET
STATIC PASSBOX
MODEL SP-1.5 SP-2 SP-3 SP-4 SP-5
Internal Dimension H 1.5 FEET 2 FEET 3 FEET 4 FEET 5 FEET
W 1.5 FEET 2 FEET 3 FEET 4 FEET 5 FEET
L 1.5 FEET 2 FEET 3 FEET 4 FEET 5 FEET
