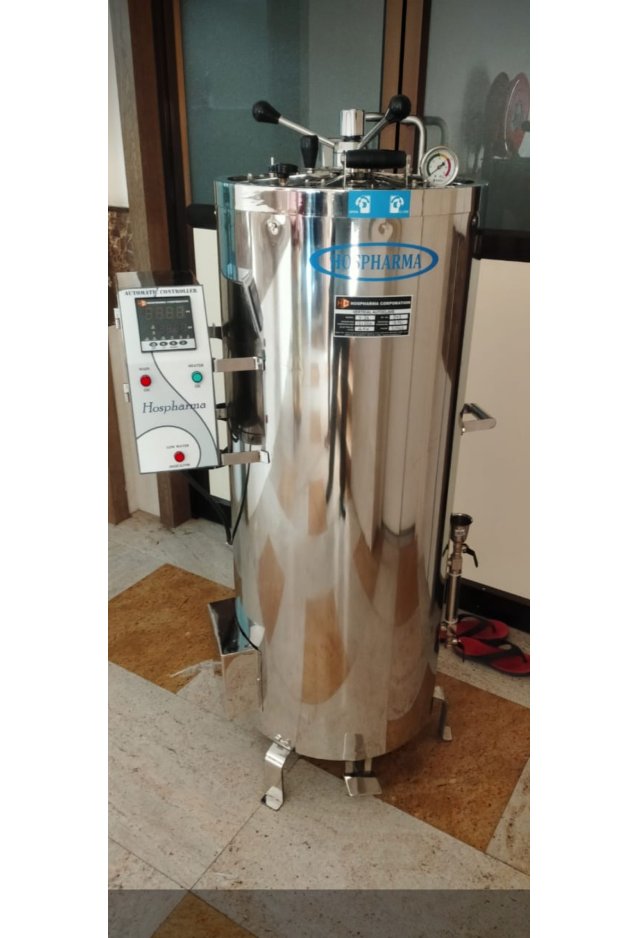

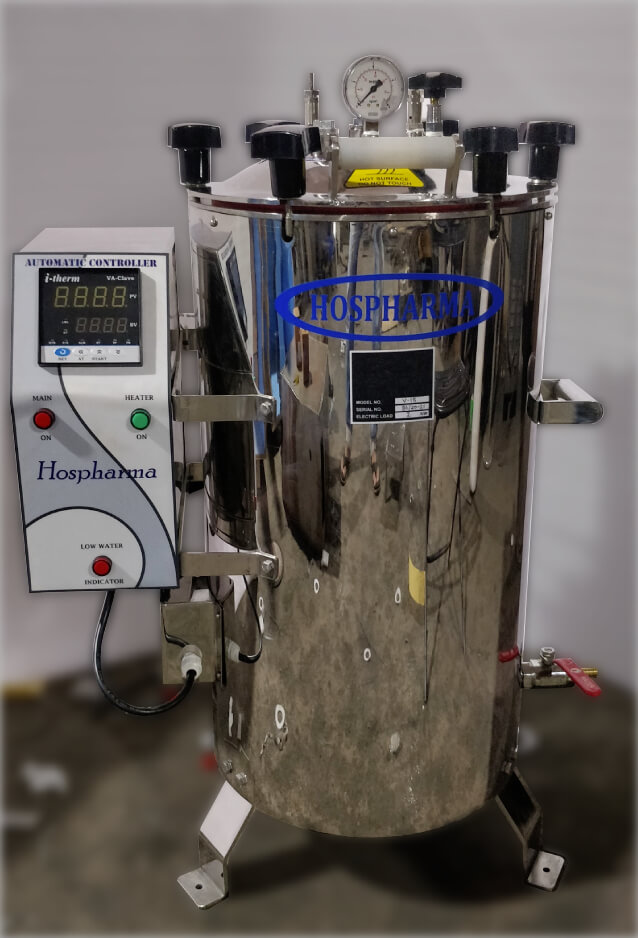

VERTICAL AUTOCLAVE
FEATURES
- S.S 304 Quality Wire-mesh Basket provided with Laboratory Fully Stainless Steel 304/316 Quality construction.
- Also Available in Cabinet Type Enclosed Model
- Customized to any chamber dimensions required by the customer.
- Hydraulically Tested to 2 times the designed working pressure.
- Double Walled Construction with Glass wool/PUF insulation.
- Available in Double Walled Laboratory Model & Triple Walled Hospital Model.

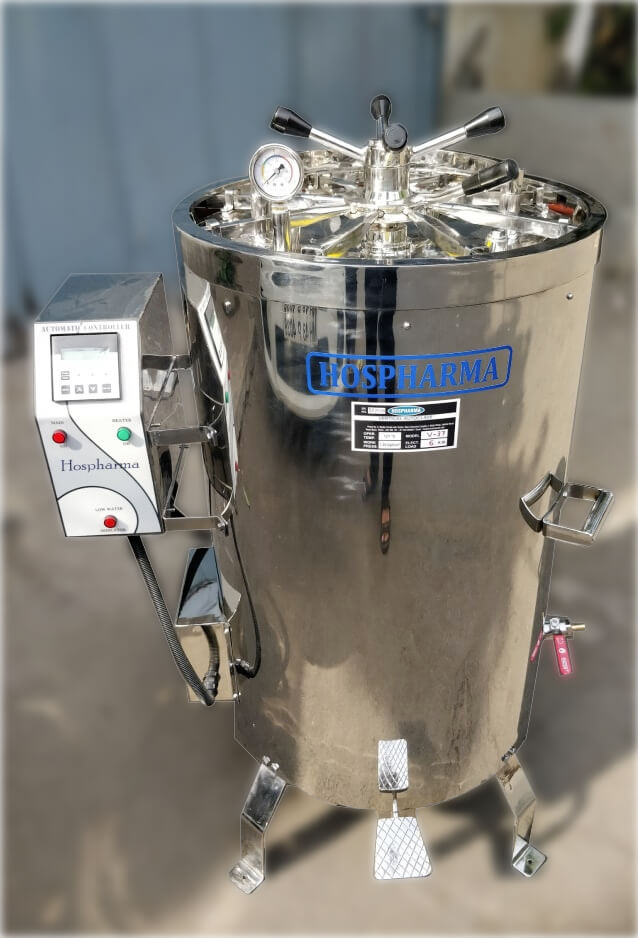

- Available in Wing Nut type Locking system, Radial Lid Locking & Single Lever Locking system arrangement.
- Parameters Settable Fully Automatic /Semi-Automatic Digital Temp Indicator cum controller & timer
- Optional Sterilization Cycle Data Saving & Printing facility with Epson Printer.
- Heat resistant Food Grade Silicone door gasket for 100% Sealing.
- S.S 304 Quality Wire-mesh Basket provided with Laboratory Energy Efficient Heating Coil made up of High-Quality Materials.
- Low water protection system to protect the heating coils.
- S.S 304 Quality Wire-mesh Basket provided with Laboratory Automatic Purging & Steam Exhaust Facility.
- Inhouse manufactured Safety Valves for Over Pressure protection.
- S.S Pressure Gauge, Steam Release valve, Air Valve, Drain Valve, & Validation Port.
- Resolution and a control accuracy of ± 1 Deg C. & Timer: 1-99 minutes
- Audio alarm (Buzzer) gives signal of completion of sterilization cycle after set time is over
- Onsite Calibration & Validation Services available with IQ, OQ, PQ & DQ Documentations.
- S.S 304 Quality Wire-mesh Basket provided with Laboratory Model & Optional S.S Drums provided with Hospital Model.
TABLE SPECIFICATIONS
| MODEL | V-15 | V-19 | V-24 | V-29 | V-37 | V-41 | V-48 | |
|---|---|---|---|---|---|---|---|---|
| Chamber Dim.MM | D | 300 MM | 350 MM | 400 MM | 450 MM | 500 MM | 550 MM | 600 MM |
| L | 500 MM | 550 MM | 600 MM | 650 MM | 750 MM | 750 MM | 800 MM | |
| Chamber Vol. | Lit. | 35 | 52 | 75 | 100 | 150 | 180 | 225 |
| Operating Pressure & Temperature | Kg/deg | 1.2 kg/ 121 deg C | 1.2 kg/ 121 deg C | 1.2 kg/ 121 deg C | 1.2 kg/ 121 deg C | 1.2 kg/ 121 deg C | 1.2 kg/ 121 deg C | 1.2 kg/ 121 deg C |
| Power (phase) | KW | 2 KW Single Phase | 3 KW Single Phase | 4 KW Single Phase | 4 KW Single Phase | 6 KW Single/Three Phase | 6 KW Single/Three Phase | 9 KW Three Phase |
