TISSUE CULTURE & MUSHROOM INDUSTRIES

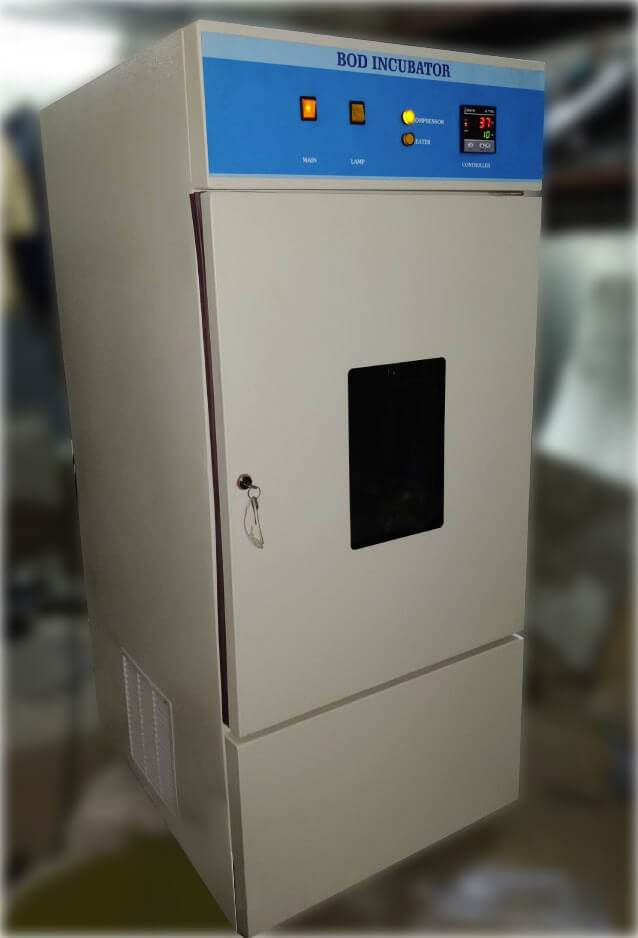

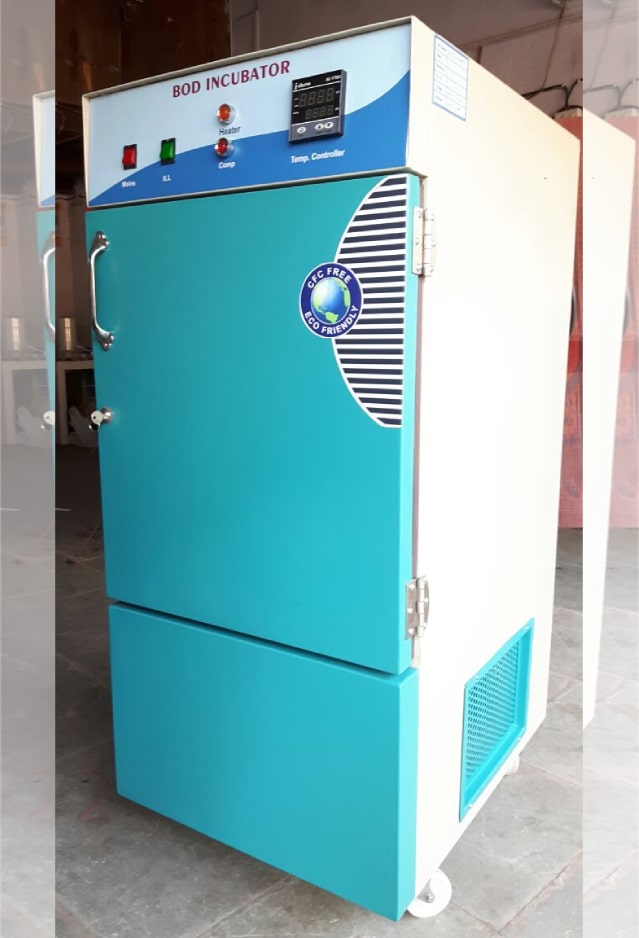

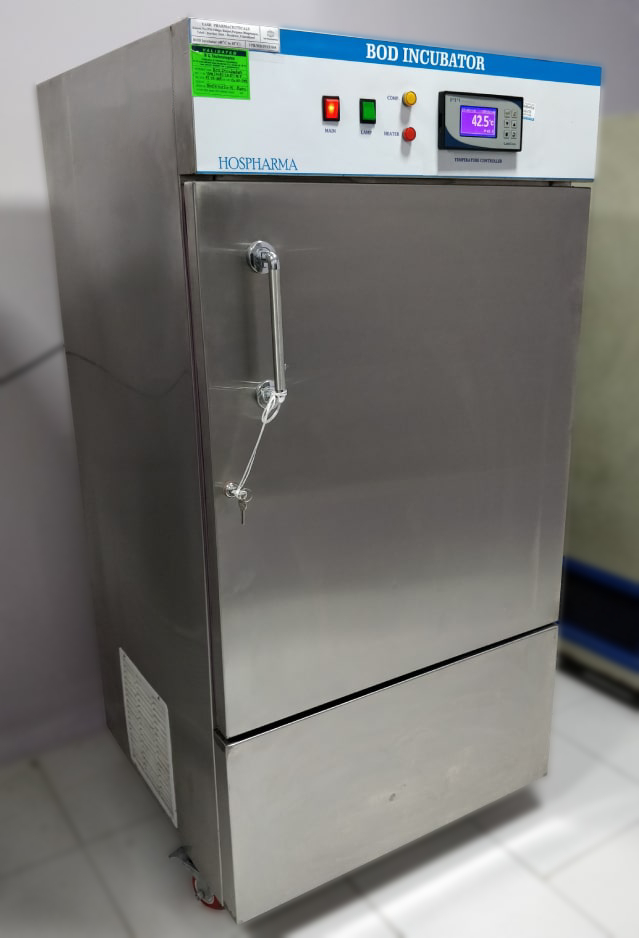

BOD INCUBATORS
FEATURES
- BOD Incubator (Bio-Oxygen Demand) are used to maintain temperature for test tissue culture growth, storage of bacterial cultures and incubation where high degree of constant temperature accuracy is required. Hospharma BOD Incubators provide accurate conditions and uniformity throughout the chamber
- Manufactured as per GMP norms.
- Available in Fully S.S 304 GMP Model & S.S 304 /M.S Combination Standard Model
- Chamber fabricated with heavy duty SS 304/ SS 316 Quality.
- Double Walled Construction with Glass wool/PUF insulation.
- Temperature ranges from 5°C to 60°C with Excellent uniformity.
- Inside full-length observation glass door.
- Food grade Silicon Rubber gasket for 100% Sealing.
- Validation Port provided to insert sensors for Validation purpose.
- Branded PID temperature controllers that feature auto-tuning and display both set value (SV) and process value (PV). It is also responsible for accuracy of temperature during the entire cycle. RTD PT100 sensor has sensitivity of ±0.1°C. Temperature Accuracy: ± 0.2 °C & Temp & Uniformity : ± 2.0 °C
- Compressor with CFC Free R 134 A / R 404 (Eco Friendly) refrigerant
- Sheathed Tubular air heaters are considered best. These elements are ISI mark and from reputed brands in the market and offer fast heat up using minimum energy consumption
- Air Circulation: In order to achieve better uniformity across the chamber, air circulation is mandatory therefore, we use only branded motor and blower assembly for this purpose. It is fitted at rear side or top side of the chamber as per convenient.
- S.S 304 Quality Wire-Mesh Trays provided inside the Chamber.
- High Quality S.S Hinges & Easy to Operate Door Locking Mechanism
- High intensity, low wattage 750-800 lux Light & Noise Level Less than 65 decibels.
- Customized Chamber as per customer’s required dimensions. we also offer number of optional features and accessories with our BOD Incubators such PLC based control system with 7” colour touchscreen HMI, 21 CFR Part 11 compliance window-based communication software for data management, Temperature scanner complete with sensors and printer interface and data storage facility.
TABLE SPECIFICATIONS
| MODEL | BOD-95 | BOD-225 | BOD-275 | BOD-340 | BOD-530 | |
|---|---|---|---|---|---|---|
| Chamber Dim.MM | W | 450 MM | 600 MM | 600 MM | 600 MM | 600 MM |
| D | 450 MM | 600 MM | 600 MM | 600 MM | 600 MM | |
| D | 450 MM | 600 MM | 750 MM | 900 MM | 900 MM | |
| Chamber Vol. | Lit. | 95 | 225 | 275 | 340 | 530 |
| Power Single Phase | KW | 3 KW | 3 KW | 4 KW | 4 KW | 5 KW |
| No of Shelves | 2 NOS | 3 NOS | 3 NOS | 4 NOS | 4 NOS | |
