LABORATORIES & PHARMACEUTICALS

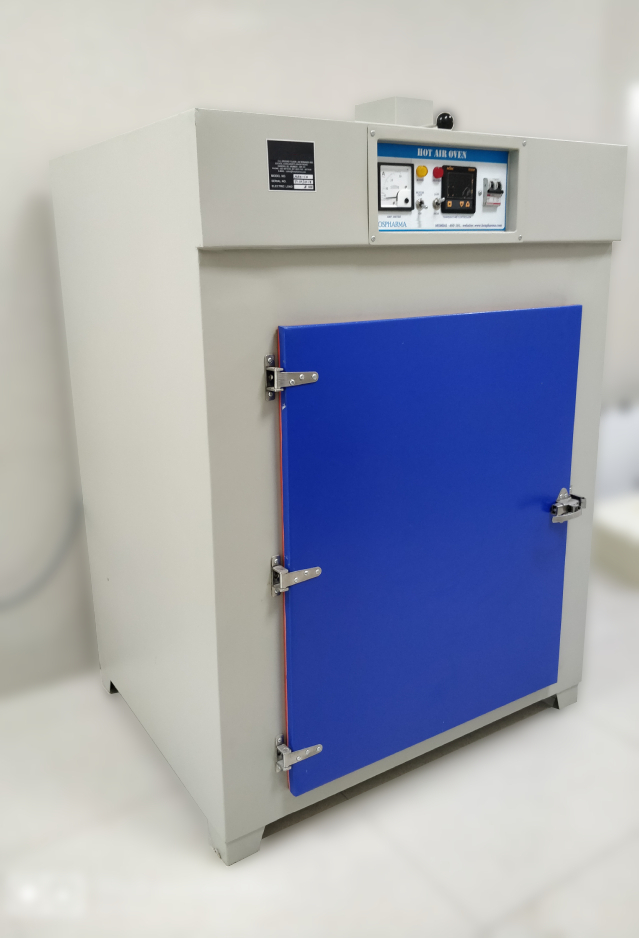

HOT AIR OVEN / DRYING CABINET
FEATURES
- Manufactured as per GMP norms.
- Available in Fully S.S 304 GMP Model & S.S 304 /M.S Combination Standard Model
- Chamber fabricated with heavy duty SS 304/ SS 316 Quality.
- Double Walled Construction with Glass wool/PUF insulation.
- Temperature ranges from ambient +10°C to 300°C. Excellent uniformity at high temperatures
- Ampere Meter provided on the Control Panel with Individual MCB/Switches for Motor, Heater & Main ON/OFF.
- Food grade Silicon Rubber gasket for 100% Sealing.
- Branded PID temperature controllers that feature auto-tuning and display both set value (SV) and process value (PV). It is also responsible for accuracy of temperature during the entire cycle. RTD PT100 sensor has sensitivity of ±0.1°C or better
- Sheathed Tubular air heaters are considered best for hot air ovens; these elements are ISI mark and from reputed brands in the market and offer fast heat up using minimum energy consumption
- Air Circulation: In order to achieve better uniformity across the chamber, air circulation is mandatory therefore, we use only branded motor and blower assembly for this purpose. It is fitted at rear side or top side of the chamber as per convenient.
- S.S 304 Quality Wire-Mesh Trays provided inside the Chamber.
- High Quality S.S Hinges & Easy to Operate Door Locking Mechanism
- Fumes Vent Port provided for fume exhaust.
- Customized Chamber as per customer’s required dimensions. we also offer number of optional features and accessories with our hot air oven such as toughened glass viewing window, Castor Wheels, perforated stainless steel shelves, 21CFR based controller, data logging and monitoring device.
TABLE SPECIFICATIONS
| MODEL | HAO-28 | HAO-95 | HAO-225 | HAO-275 | HAO-340 | HAO-450 | HAO-530 | |
|---|---|---|---|---|---|---|---|---|
| Chamber Dim.MM | W | 300 MM | 450 MM | 600 MM | 600 MM | 600 MM | 600 MM | 750 MM |
| D | 300 MM | 450 MM | 600 MM | 600 MM | 600 MM | 600 MM | 750 MM | |
| H | 300 MM | 450 MM | 600 MM | 750 MM | 900 MM | 1200 MM | 900 MM | |
| Chamber Vol. | Lit. | 28 | 95 | 225 | 275 | 340 | 450 | 530 |
| Power Single Phase | KW | 1.5 KW | 2 KW | 3 KW | 3.5 KW | 4 KW | 4 KW | 5 KW |
| No of Shelves | 1 NOS | 2 NOS | 3 NOS | 3 NOS | 4 NOS | 5 NOS | 4 NOS | |
